Everything Under One Roof所有工序在同一屋檐下
Subcontracting is where tolerance is lost and schedules slip. From raw coil to crated panel, every operation happens in our own plant — which is why we can quote an 18-day lead time and actually keep it. 外协加工是公差丢失和工期延误的根源。从原材料卷材到装箱成品，每一道工序都在我们自己的工厂完成 — 这也是我们能承诺 18 天交期并真正守住它的原因。
Cutting & Blanking下料切割

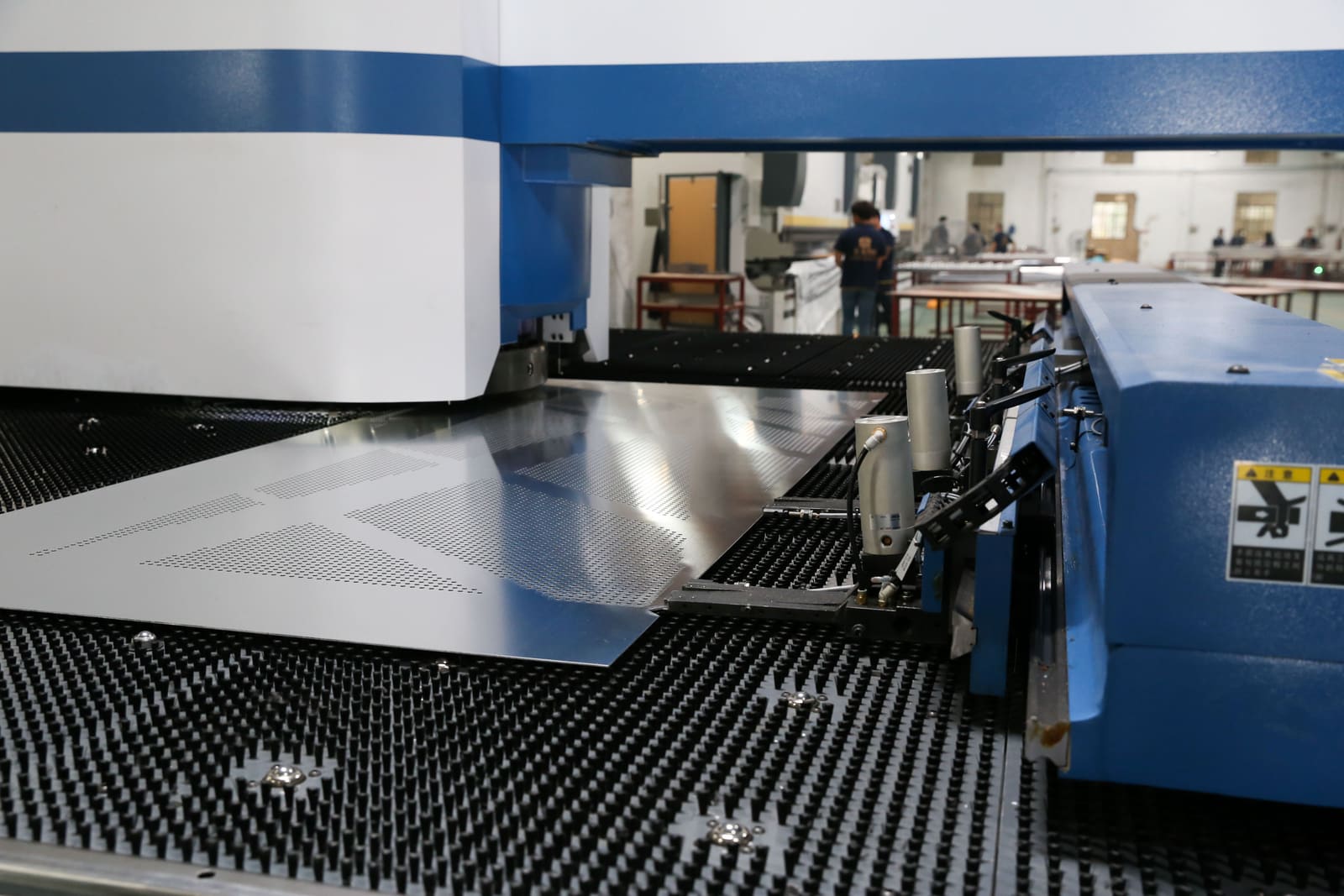

CNC turret punch, fibre laser and shearing. Tolerance held at ±0.3 mm on cut profile.数控转塔冲、光纤激光与剪板。外形切割公差控制在 ±0.3 mm。
Forming & Rolling折弯滚弯

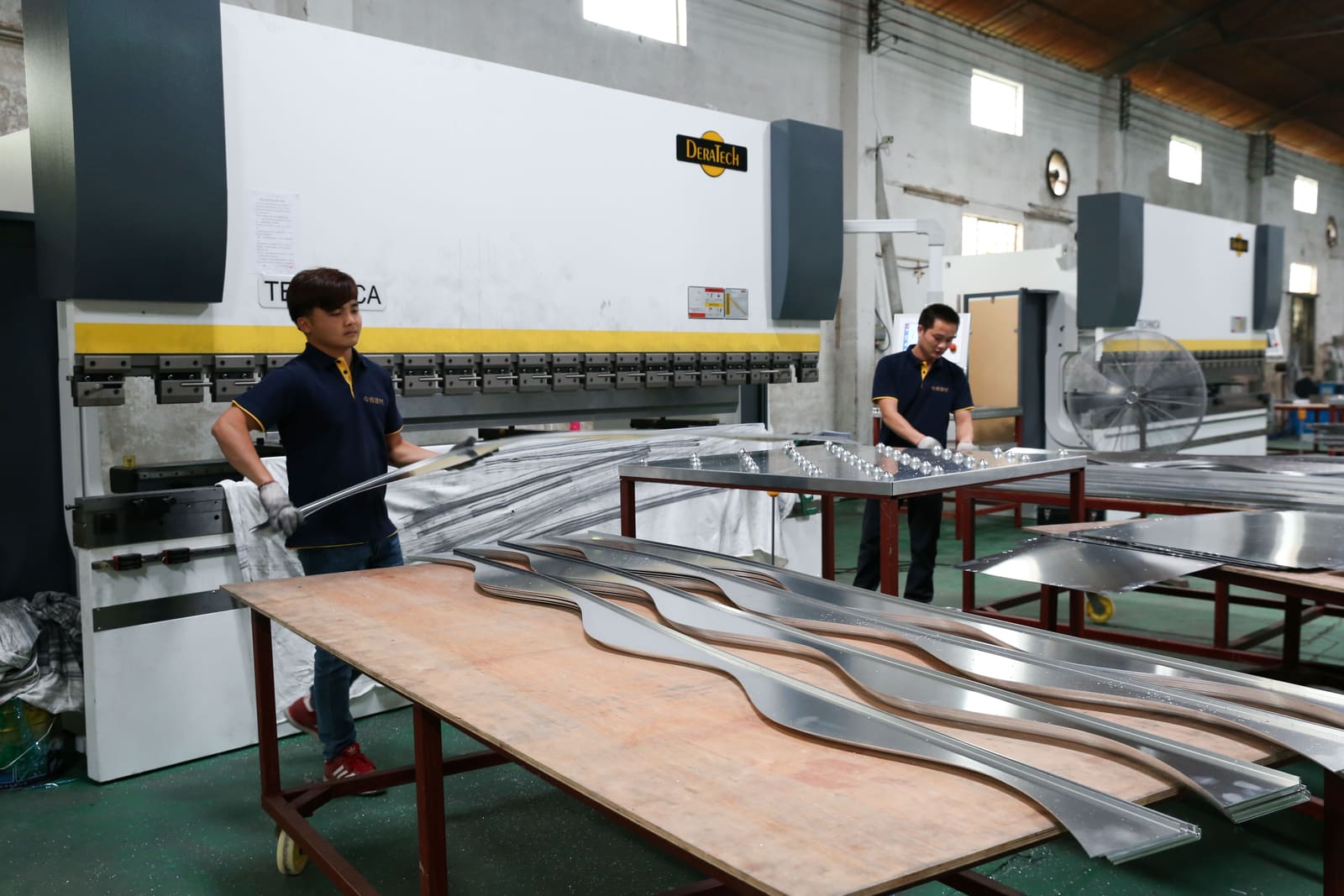

CNC press brakes to 4 m, plus 3-roll and 4-roll benders for radii from 300 mm.4 米数控折弯机，配三辊、四辊卷板机，最小半径 300 mm。
Welding & Grinding焊接打磨
TIG and MIG on aluminium with argon backing; welds ground flush for seamless corners.氩弧焊与氩气保护的熔化极焊接，焊缝打磨齐平实现无缝转角。
Pretreatment & Coating前处理与喷涂
Dedicated pretreatment line and PVDF spray booth with batch-controlled colour.独立前处理线与氟碳喷涂房，按批次控制颜色一致性。
Inspection & Trial Assembly检验与预拼装
100% dimensional check pre-coating; trial assembly for curved and complex packages.喷涂前 100% 尺寸检验；弧形及复杂板型项目进行预拼装。
Export Packing出口包装

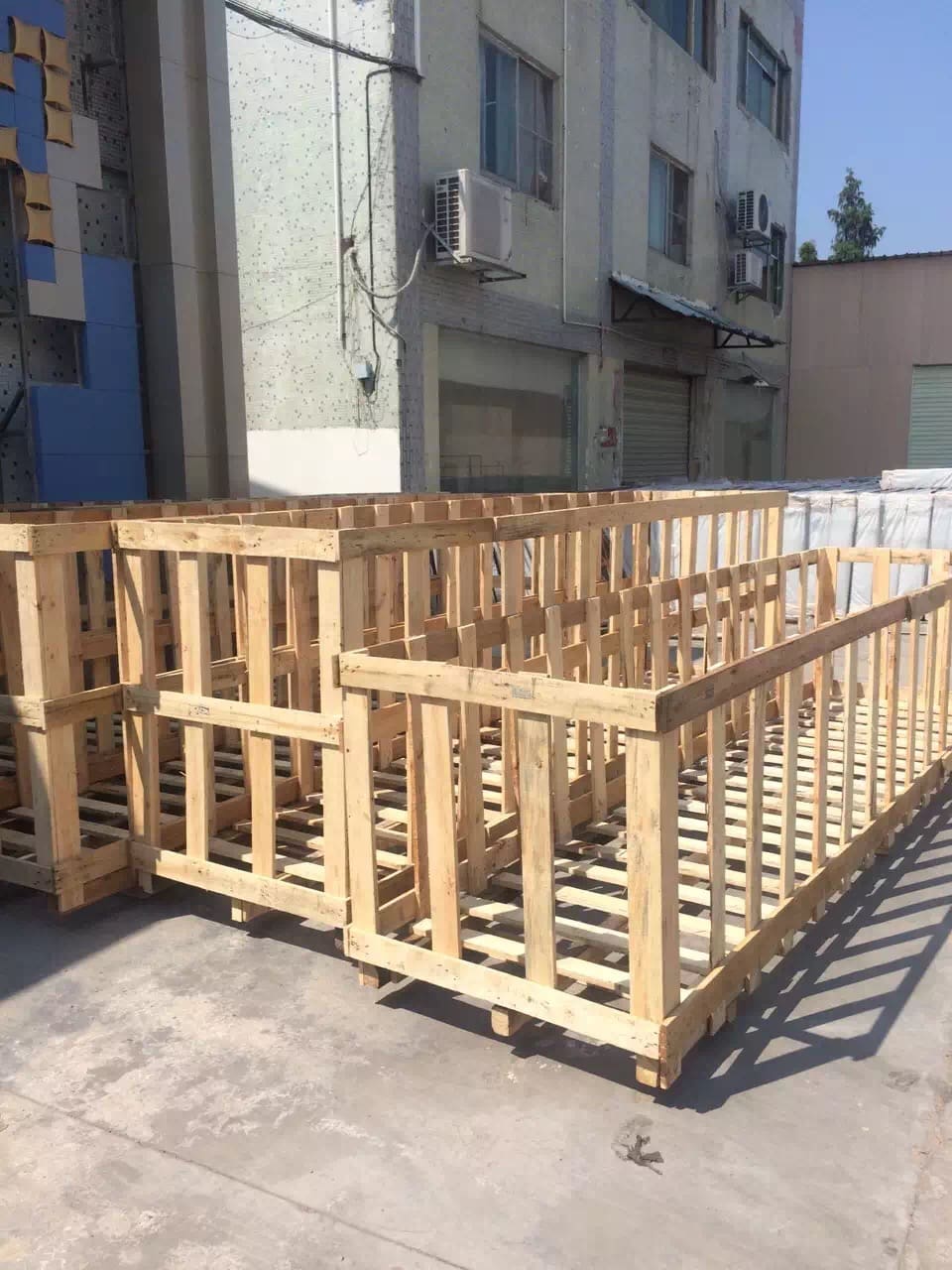

PE film, corner guards, plywood crates with packing list mapped to drawing IDs.PE 保护膜、护角、胶合板木箱，装箱单编号与图纸一一对应。
Checking In and Out, Four Times四道关口，进出厂都要检
Incoming material原材进厂
Mill certificate matched to heat number; thickness and coating base verified.核对质保书与炉批号，复检厚度与基材涂层。
After fabrication钣金完成

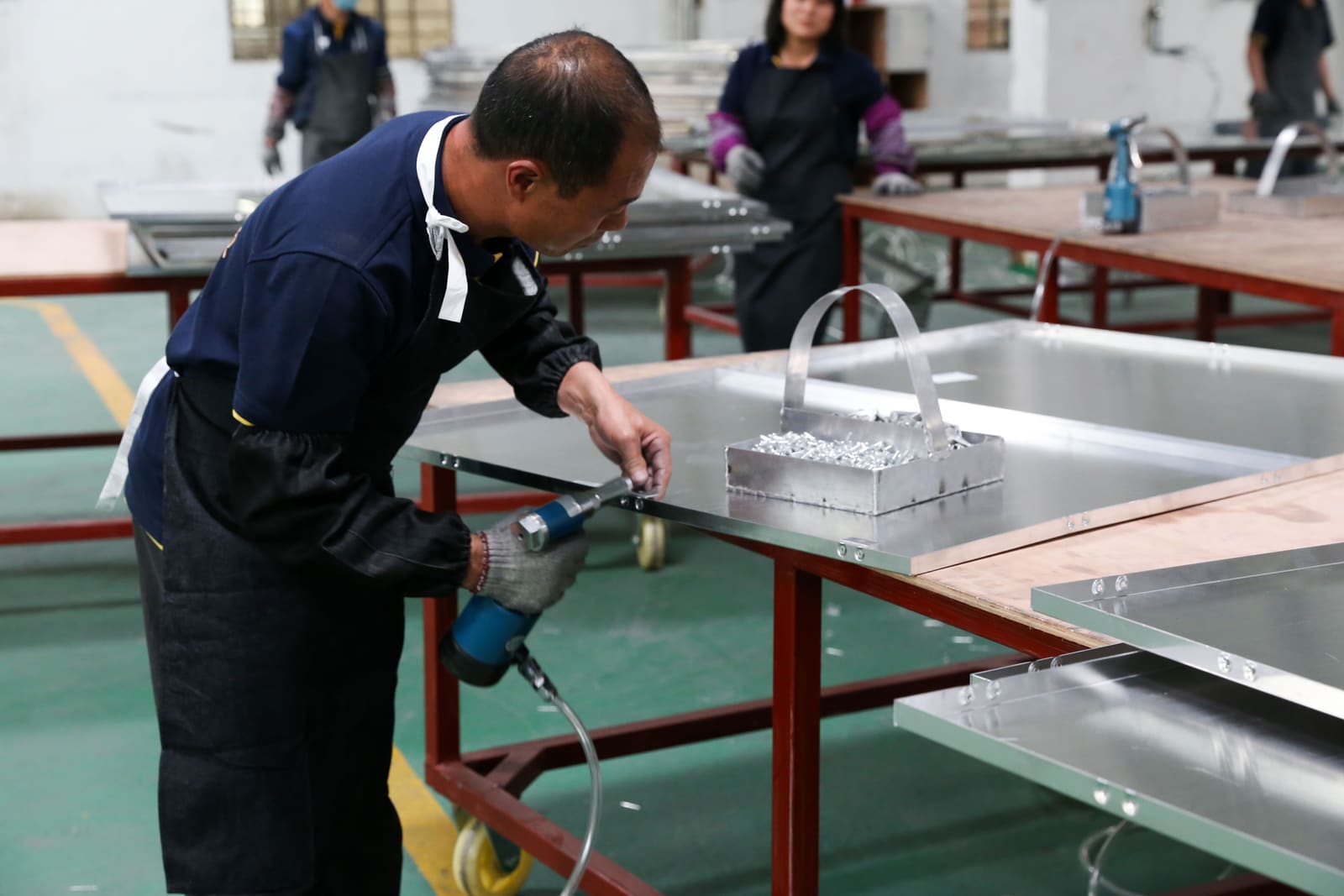

Every panel measured against shop drawing; flatness, diagonals, hole positions.每块板按加工图量测：平整度、对角线、孔位。
After coating喷涂完成
Film thickness gauge and colour difference recorded; adhesion spot-checked.记录膜厚与色差数据，抽检附着力。
Before loading装柜之前
Random box opening check, packing list audit, loading photos sent to client.随机开箱抽检、核对装箱单，并向客户发送装柜照片。
Free Drawing Review & Shop Drawings免费审图与深化图
Most problems in an aluminium package are visible on paper long before they appear on site. Our drafting team reviews your model for constructability and returns a fully numbered panel layout for your approval — at no charge, whether or not the order lands.铝板项目里的大多数问题，早在现场出现之前就已经画在图上了。我们的深化团队会审查你的模型是否便于加工，并返回完整编号的板块排布图供你确认 — 无论最终是否下单，这项服务都不收费。
- Constructability review: panel sizes, joint details, subframe interface可加工性审查：板块尺寸、接缝节点、龙骨接口
- Numbered panel layout drawing and quantity take-off in DWG & PDF编号板块排布图与工程量统计，输出 DWG 与 PDF
- Typical node details: corner, parapet, expansion joint, penetration典型节点：转角、女儿墙、伸缩缝、开洞收边
- Revision tracking — every change recorded with date and reason版本管理 — 每次修改记录日期与原因
Test us with your hardest drawing拿你最难的一张图纸来试试
Feasibility answer within one working day, no obligation.一个工作日内回复可行性评估，无任何义务。
