Aluminum Baffle & Square Tube铝方通·铝方管
Linear baffle ceilings, wall partitions and exterior screening in wood-grain and solid finishes线条式吊顶、室内隔断与外墙格栅，木纹与纯色多色可选
Product Overview产品概述
Made to Your Drawing按图定制
Extruded and roll-formed aluminum baffles for ceilings, partitions and facades. Wood-grain transfer, polyester and PVDF finishes; open linear systems that hide MEP services while keeping the plenum accessible.型材与辊涂铝方通，用于吊顶、室内隔断与外墙格栅。木纹转印、聚酯、氟碳多工艺；开放式线条系统可隐藏机电管线并保持检修便利。
- Office & retail ceilings办公与商业吊顶
- Lobby wall partitions大堂墙面隔断
- Exterior sun-shade screens外墙遮阳格栅
- Transit hubs交通枢纽
| Parameter | 参数 | Specification | 规格 |
|---|---|---|---|
| Material | 材质 | AA3003 / AA5052 / AA6063 aluminumAA3003 / AA5052 / AA6063 铝合金 | |
| Thickness | 厚度 | 0.8–3.0 mm0.8–3.0 mm | |
| Section size | 截面规格 | 20–200 mm width, 30–300 mm height, custom宽 20–200 mm，高 30–300 mm，可定制 | |
| Length | 长度 | Up to 6,000 mm最长 6,000 mm | |
| Finish | 表面处理 | Wood-grain transfer / Polyester / PVDF木纹转印 / 聚酯 / 氟碳 | |
| System | 安装系统 | Clip-in carrier / suspension rail卡扣龙骨 / 吊挂式龙骨 |

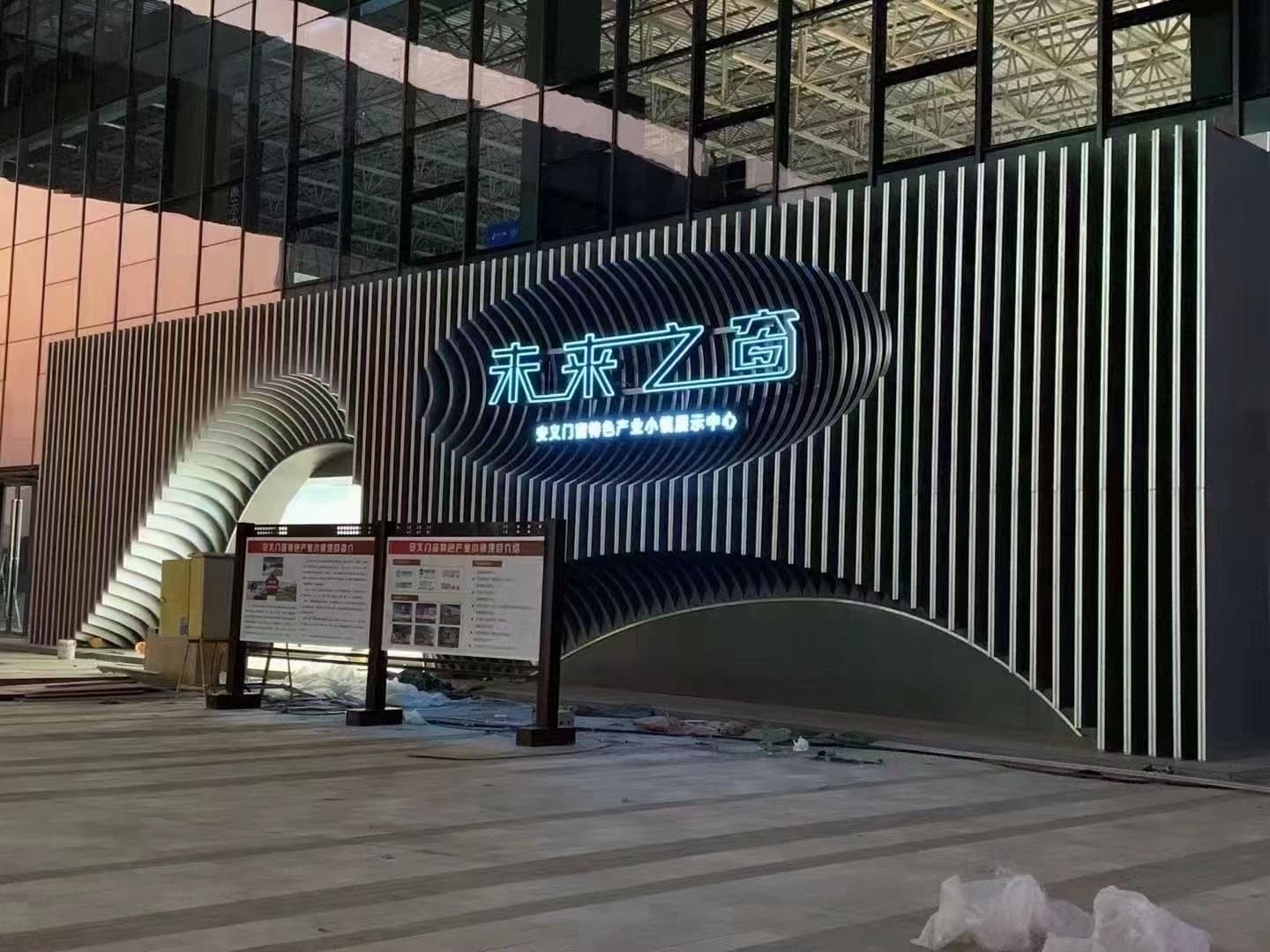

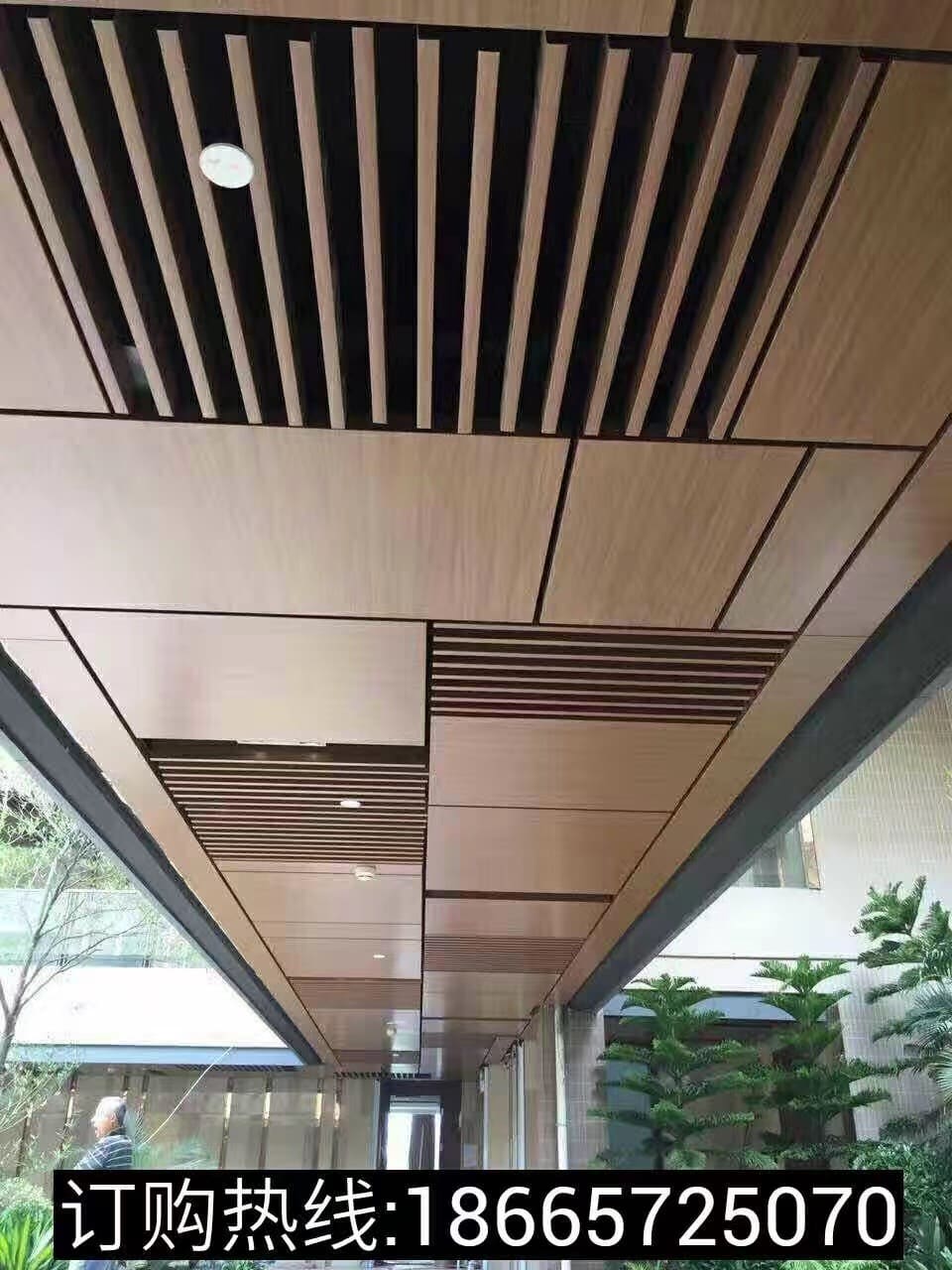

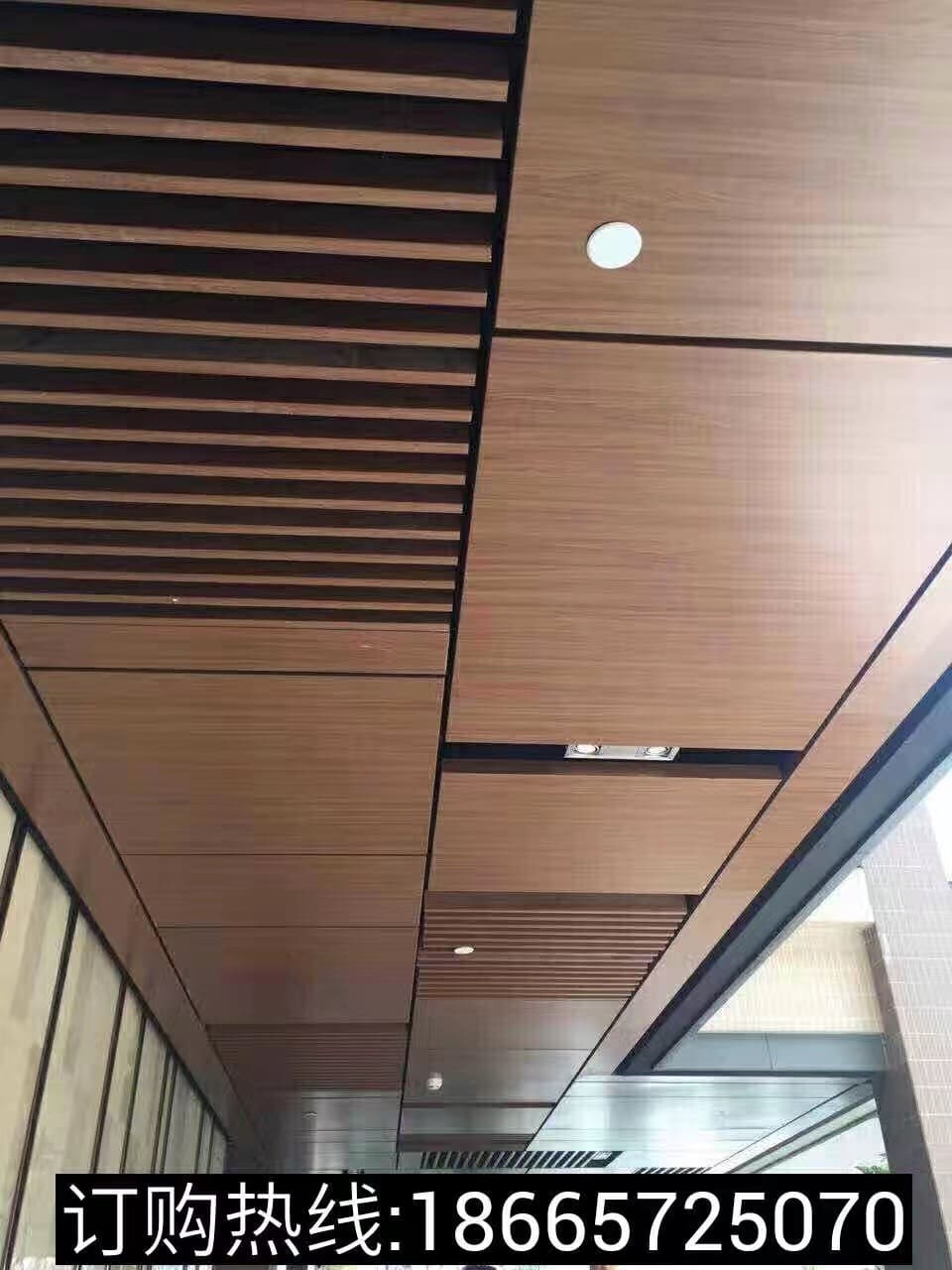

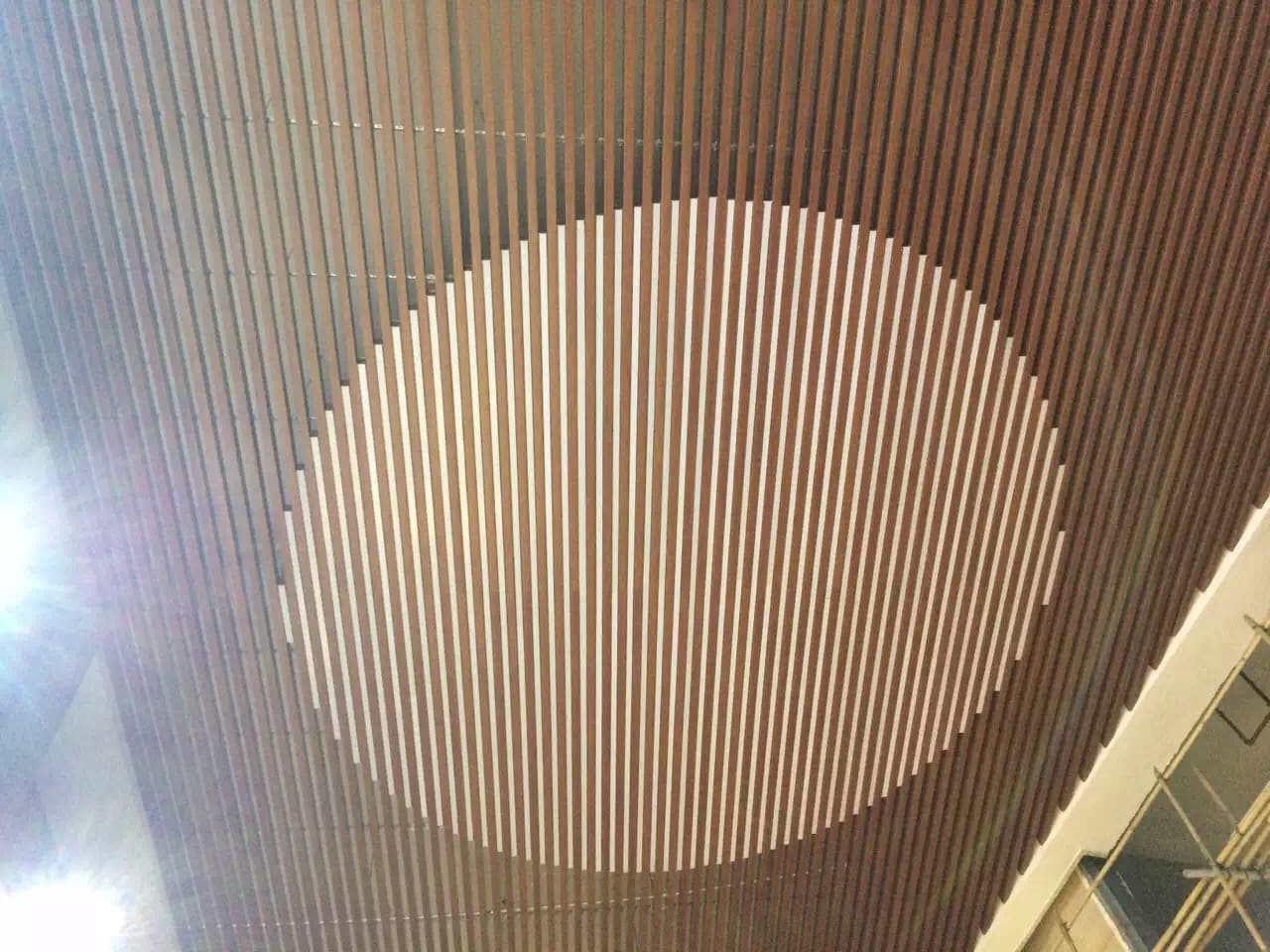

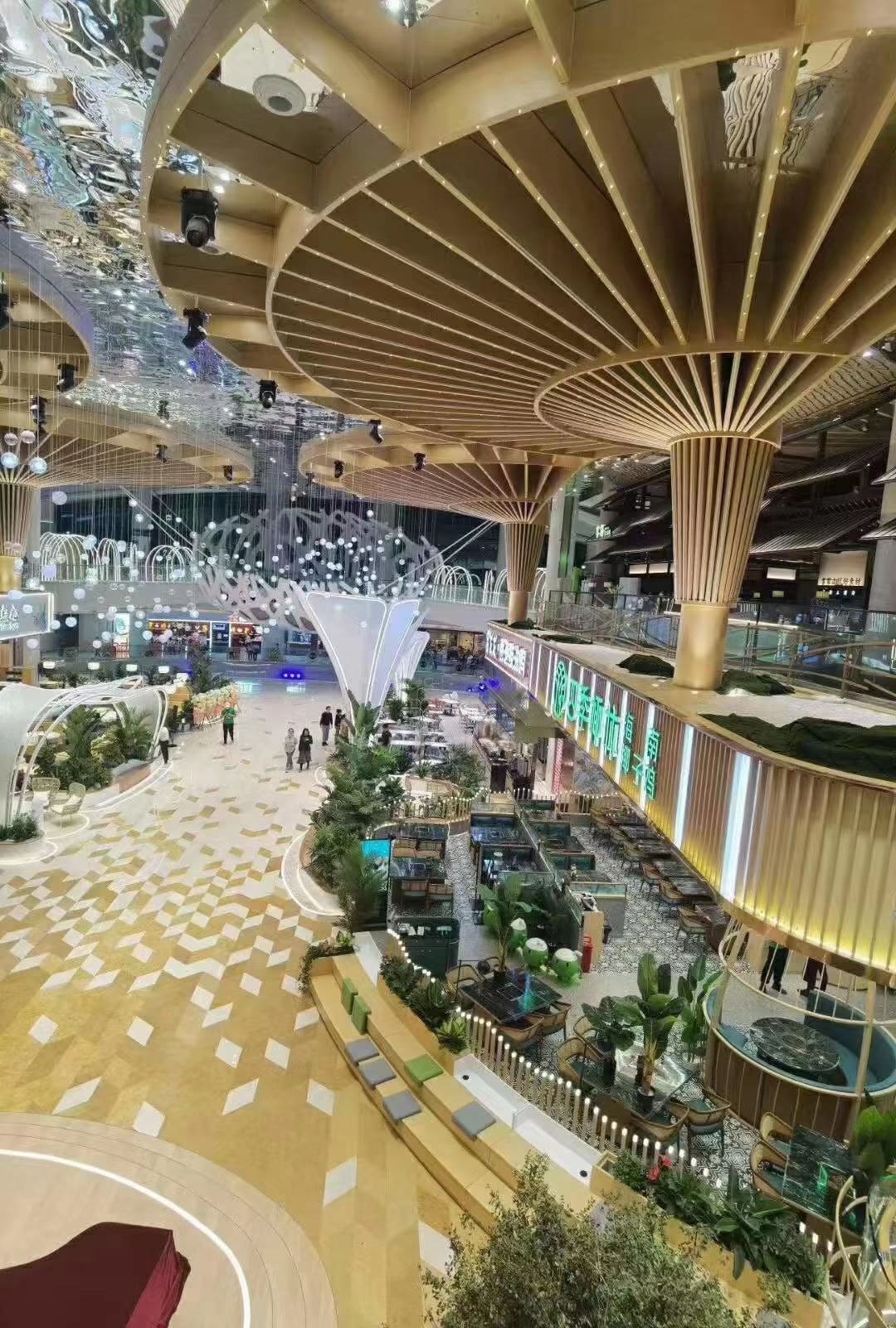

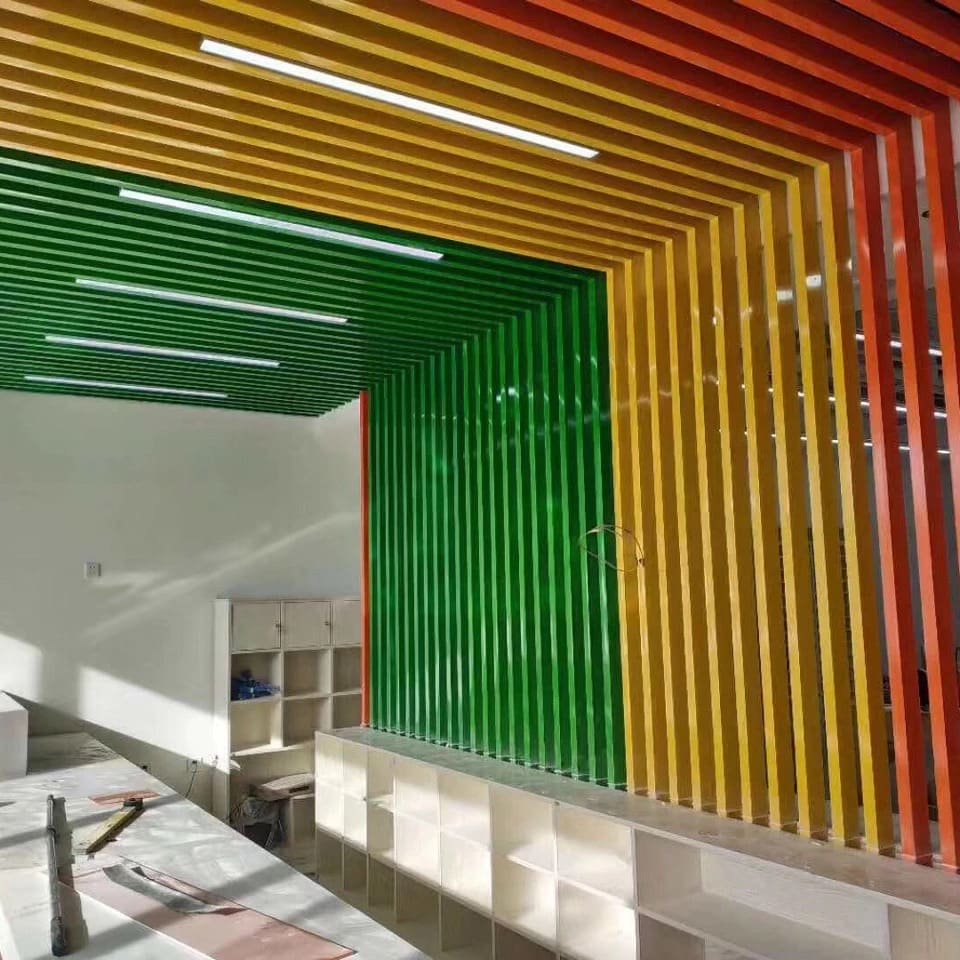

Gallery实拍图库
Real Production & Project Photos生产与工程实拍
Send your drawing, get a price in 24h发图纸，24小时内报价
DWG / PDF / sketch all acceptable. Shop drawing service available.支持 DWG / PDF / 草图，可提供深化图服务。
